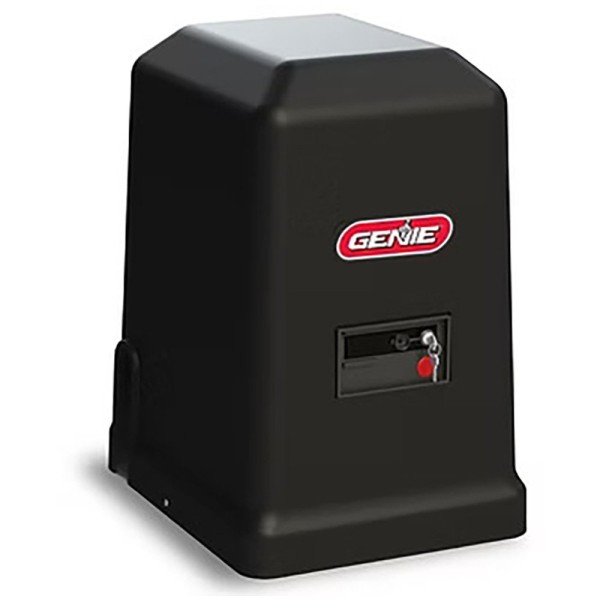

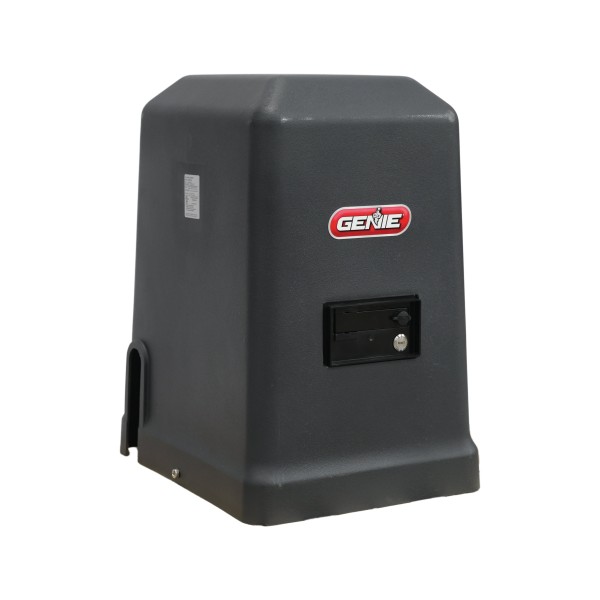

Genie Residential Slide Gate Opener (25 ft, 850lbs.) - OPGRSL24V

With a rapid 11" per second opening speed, the Genie Residential Slide Gate Opener gets your up to 850 lb and 25 ft long gates open in seconds with just the push of a button. With an advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs, a timer to close your gate, as well as Aladdin Connect to enable Google, Ring, or Alexa connectivity, this residential gate opener is the perfect solution for securing your home or private property.

Features:

• Dual line backlit LCD display
• Adjustable speed
• Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
• Aladdin Connect ready (with optional Wi-Fi board)
• Timer to close
• Battery backup
• Up to 150 cycles on fully charged batteries
• On-board solar charge controller
• Surge protection on field wiring inputs
• Four monitored safety inputs
• Two auxiliary relays, configurable from LCD
• Built-in 7-day timer
• Bi-parting delay, adjustable on LCD

Specifications:

• Gate Leaf Weight (maximum) 850 lbs / 386 kg
• Gate Leaf Length (maximum) 25 ft / 7.62 m
• Opening Time 11 in / sec
• 115VAC, field adjustable to 230VAC
• Duty Cycle 50% with up to 120 cycles per day
• Rated for use on gates up to 25 ft long and 850 lbs
• -20° to +60°C (-40° to +60°C with optional heater)
• (2) 7Ah batteries included
• 3 Year warranty
• UL 325 Listed, Class I, II
• 24VDC switched and constant accessory power, up to 800mA combined
• 24VDC motor
• Direct drive motor to worm gear reduction
• Electro-mechanical limits stay synced through power loss
• Keyed release lever disconnects drive allowing for easy manual operation
