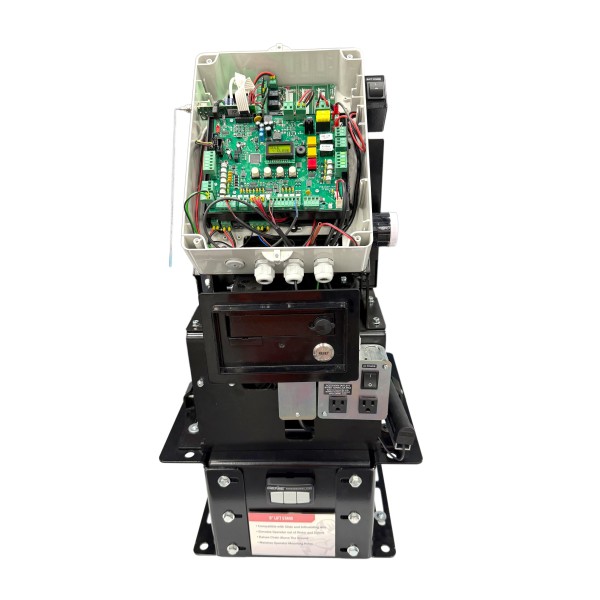

Genie Commercial Slide Gate Opener (40 ft, 1,500 lbs.) - OPGCSL36V
Details
Genie Commercial Slide Gate Opener (40 ft, 1,500 lbs.) - OPGCSL36V
Meant for commercial gates up to 40' long and 1,500 lbs, the Genie Commercial Slide Gate Opener is a fantastic mechanical continuous duty for your business. Featuring a dual line backlit LCD display, 7-day timer, primary and secondary control for dual gates, and even solar compatability with its on-board solar charge controller, the Genie Commercial Slide Gate Opener is packed with features for any need!
Features:
- Dual line backlit LCD display
- Adjustable speed
- Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
- Aladdin Connect ready (with optional Wi-Fi board)
- Timer to close
- Battery backup
- Up to 150 cycles on fully charged batteries
- On-board solar charge controller
- Rack for pluggable loop detectors
- Surge protection on field wiring inputs
- Four monitored safety inputs
- Two auxiliary relays, configurable from LCD
- Built-in 7-day timer
- Primary/secondary control for dual gates
Specifications:
- Gate Leaf Weight (maximum) 1,500 lbs / 680 kg
- Gate Leaf Length (maximum) 40 ft / 12.2 m
- Opening Time 11-12 in / sec
- 115VAC, field adjustable to 230VAC
- 100% Continuous Duty Cycle
- Rated for gates up to 40 ft wide and 1500 lbs
- -20° to +60°C (-40° to +60°C with optional heater)
- (2) 7Ah batteries included
- 5 Year warranty
- UL 325 Listed, Class I, II, III, and IV
- 24VDC switched and constant accessory power, up to 800mA combined
- 36V Brushless DC Motor
- Direct drive motor to worm gear in oil bath reduction
- Electro-mechanical limits stay synced through power loss
- Keyed release lever disconnects drive allowing for easy manual operation
Compatible Accessories:
- Genie Wireless Safety Edge Receiver
- Genie Wireless Edge Link Sensor TX Transmitter
- Genie 1-Button Gate Remote Control (Wireless Transmitter G1BT-P)
- Genie 3-Button Gate Remote Control (Wireless Transmitter G3BT-P)
- Genie 4-Button Gate Remote Control (Wireless Transmitter GU4T-BX)
- Genie Sensitivity Remote Control for VMD202 Exit Wand
- Genie Wireless Keypad for Gate Openers (Intellicode GK2)
- Genie Universal Wireless Keypad for Gate Openers
- Genie Retro-Reflective Photo Eye Sensor Kit for Gate Openers (Polarized Beam)
- Genie Thru-Beam Photo Eye Sensor Kit with Hood
- Genie Retro-Reflective Photo Eye Kit with Hood
- Genie Universal Thru-Beam Photo Eye Sensor Kit (UL325, 115 ft Range)
- Genie Long Range Reflective Photo Eye Sensor with Reflector (40 ft, NEMA 4)
- Genie Fire Access Knox Box with Keys for Emergency Gate Entry
- Genie Ultra Plug-In Loop Detector (10-Pin)
- Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter - (UL325 NC / 10K / 4-Wire Pulse, 2 Frequency)
- Genie Monitored Safety Edge (5 ft) for 2" Square Gate Posts
- Genie Monitored Safety Edge (5 ft) for 2" Round Gate Posts
- Genie Vehicle Motion Detector Exit Wand (Direct Burial, 150 ft Lead)
Compatible Transmitters & Receivers
Compatible Keypads
Compatible Photo Eyes
Compatible Other Safety Accessories
| SKU | OPGCSL36V |
|---|---|
| Manufacturer | Genie |
| Mounting Type | Surface |
| Model | Genie GCSL |
| Max Gate Size | 40 ft. per leaf |
| Max Gate Weight | 1500 lbs. per leaf |
| Package Includes | Battery Backup, Chain, Edge Kit, Gate Opener, Installation Hardware, Key(s), L Bracket, Photoeye(s), Transmitter, Warning Sign(s) |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Condition | New |
| Specifications Sheet | Download PDF file |
| Installation Manual | Download PDF file |
| Installation Notes | Download PDF file |
| Warranty | Download PDF file |
