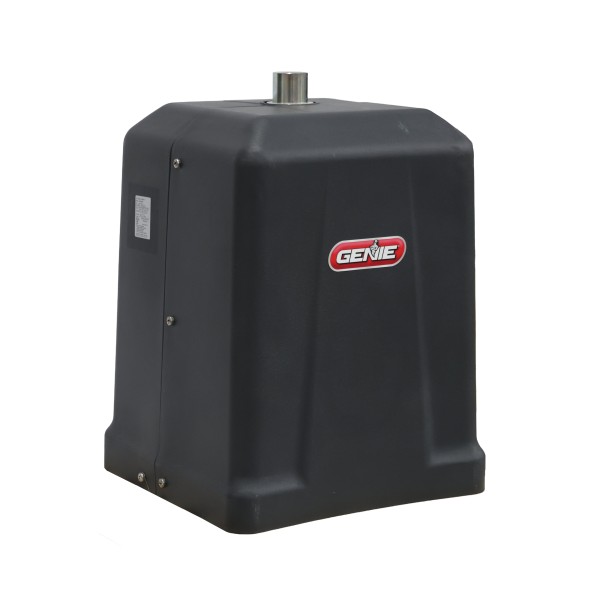

Genie Residential Pad Mounted Swing Gate Opener (16 ft, 1,000 lbs.) - OPGRSW24V

Pad mounting and fast opening , the Genie Residential Pad Mounted Swing Gate Opener is ready to take on a wide variety of residential gates up to 1000 lbs of weight and up to 16 ft in length. With a built-in 7 day timer, Solar charge controller, and battery backup, this gate opener is the perfect way to ensure that your gate is secure at all times. Aladdin Connect Ready for Alexa and Google connectivity, or use one of the up to 250 intellicode transmitters with unique IDs you can connect to your gate opener!

Features:

• Dual line backlit LCD display
• Adjustable speed
• Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
• Aladdin Connect ready (with optional Wi-Fi board)
• Timer to close
• Battery backup
• Up to 150 cycles on fully charged batteries
• On-board solar charge controller
• Surge protection on field wiring inputs
• Four monitored safety inputs
• Two auxiliary relays, configurable from LCD
• Built-in 7-day timer
• Primary/secondary control for dual gates

Gate Weight @ Gate Length

• 1000 lbs (453 kg) @ 6 ft (1.8 m)
• 800 lbs (363 kg) @ 8 ft (2.4 m)
• 700 lbs (317 kg) @ 10 ft (3.0 m)
• 600 lbs (272 kg) @ 12 ft (3.7 m)
• 500 lbs (226 kg) @ 14 ft (4.3 m)
• 400 lbs (181 kg) @ 16 ft (4.9 m)

Specifications:

• 115VAC, field adjustable to 230VAC
• Duty Cycle 50% with up to 250 cycles per day
• Rated for use on gates up 16 ft wide or 1000 lbs
• -20° to +60°C (-40° to +60°C with optional heater)
• (2) 7Ah batteries included
• 3 Year warranty
• UL 325 Listed, Class I, II
• 24VDC switched and constant accessory power, up to 800mA combined
• 24VDC Motor
• Direct drive motor to dual gearboxes with worm in oil bath reduction
• Electro-mechanical limits stay synced through power loss
• Adjustable clutch hub with manual release lever

Compatible Accessories:

Compatible Linear Actuators

• Genie Primary Linear Actuator Arm for Swing Gate Openers
• Genie Secondary Linear Actuator Arm for Swing Gate Openers

Compatible Transmitters & Receivers

• Genie Wireless Safety Edge Receiver
• Genie Wireless Edge Link Sensor TX Transmitter
• Genie 1-Button Gate Remote Control (Wireless Transmitter G1BT-P)
• Genie 3-Button Gate Remote Control (Wireless Transmitter G3BT-P)
• Genie 4-Button Gate Remote Control (Wireless Transmitter GU4T-BX)
• Genie Sensitivity Remote Control for VMD202 Exit Wand

Compatible Keypads

• Genie Wireless Keypad for Gate Openers (Intellicode GK2)
• Genie Universal Wireless Keypad for Gate Openers

Compatible Photo Eyes

• Genie Retro-Reflective Photo Eye Sensor Kit for Gate Openers (Polarized Beam)
• Genie Thru-Beam Photo Eye Sensor Kit with Hood
• Genie Retro-Reflective Photo Eye Kit with Hood
• Genie Universal Thru-Beam Photo Eye Sensor Kit (UL325, 115 ft Range)
• Genie Long Range Reflective Photo Eye Sensor with Reflector (40 ft, NEMA 4)

Compatible Other Safety Accessories

• Genie Fire Access Knox Box with Keys for Emergency Gate Entry
• Genie Ultra Plug-In Loop Detector (10-Pin)
• Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter - (UL325 NC / 10K / 4-Wire Pulse, 2 Frequency)
• Genie Monitored Safety Edge (5 ft) for 2" Square Gate Posts
• Genie Monitored Safety Edge (5 ft) for 2" Round Gate Posts
• Genie Vehicle Motion Detector Exit Wand (Direct Burial, 150 ft Lead)
