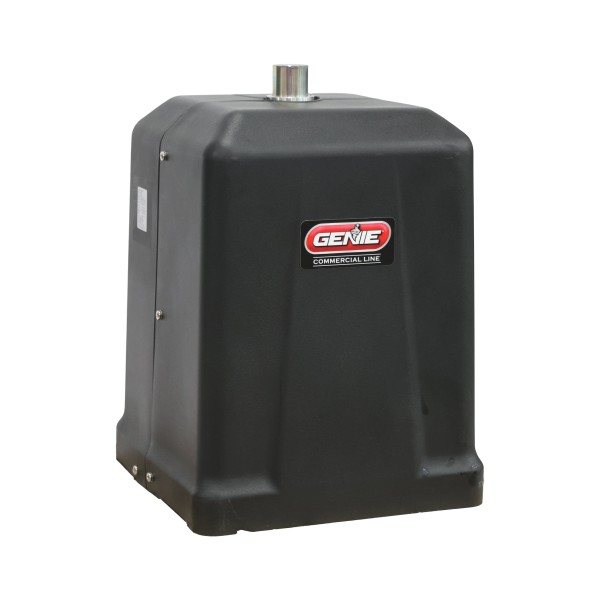

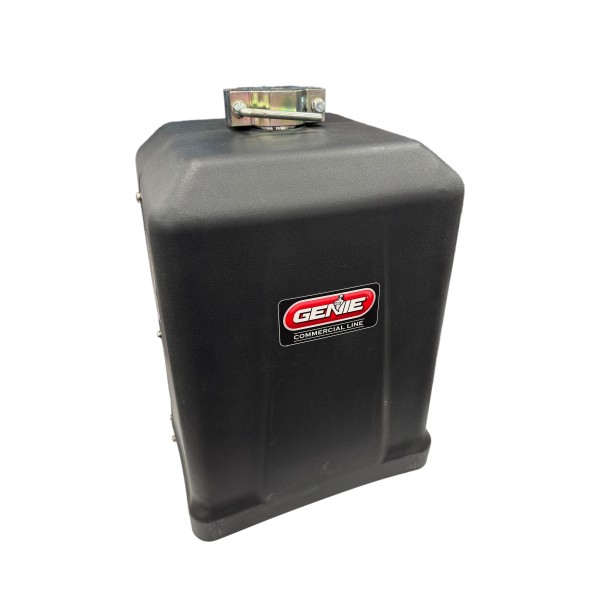

Genie Commercial Pad Mounted Swing Gate Opener (18 ft, 1,500 lbs.) - OPGCSW36V
Details
Genie Commercial Pad Mounted Swing Gate Opener (18 ft, 1,500 lbs.) - OPGCSW36V
Usable on commercial gates up to 18 ft long with a maximum gate weight of 1500 lbs @ 10 ft, the Genie Commercial Pad Mounted Swing Gate Opener is a simple yet effective swing gate opener for your business. Usable for a wide variety of gate lengths and weights (for full compatability, see below), this swing gate opener features primary and secondary control for dual gates, adjustable speed, allows for up to 250 intellicode transmitters each with unique ID, and even includes a battery backup to keep your facility secure even when the power goes out!
Features:
- Dual line backlit LCD display
- Adjustable speed
- Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
- Aladdin Connect ready (with optional Wi-Fi board)
- Timer to close
- Battery backup
- Up to 150 cycles on fully charged batteries
- On-board solar charge controller
- Rack for pluggable loop detectors
- Surge protection on field wiring inputs
- Four monitored safety inputs
- Two auxiliary relays, configurable from LCD
- Built-in 7-day timer
- Primary/secondary control for dual gates
Gate Weight @ Gate Length
- 1500 lbs (680 kg) @ 10 ft (3.0 m)
- 1200 lbs (544 kg) @ 12 ft (3.6 m)
- 1000 lbs (453kg) @ 14 ft (4.3 m)
- 800 lbs (363 kg) @ 16 ft (4.9 m)
- 600 lbs (272 kg) @ 18 ft (5.5 m)
Specifications:
- 115VAC, field adjustable to 230VAC
- 100% Continuous Duty Cycle
- Rated for use on gates up 18 ft wide or 1500 lbs
- -20° to +60°C (-40° to +60°C with optional heater)
- (2) 7Ah batteries included
- 5 Year warranty
- UL 325 Listed, Class I, II, III, and IV
- 24VDC switched and constant accessory power, up to 800mA combined
- 36V Brushless DC Motor
- Direct drive motor to dual gearboxes with worm in oil bath reduction
- Electro-mechanical limits stay synced through power loss
- Adjustable clutch hub with manual release lever
Compatible Accessories:
- Genie Wireless Safety Edge Receiver
- Genie Wireless Edge Link Sensor TX Transmitter
- Genie 1-Button Gate Remote Control (Wireless Transmitter G1BT-P)
- Genie 3-Button Gate Remote Control (Wireless Transmitter G3BT-P)
- Genie 4-Button Gate Remote Control (Wireless Transmitter GU4T-BX)
- Genie Sensitivity Remote Control for VMD202 Exit Wand
- Genie Wireless Keypad for Gate Openers (Intellicode GK2)
- Genie Universal Wireless Keypad for Gate Openers
- Genie Retro-Reflective Photo Eye Sensor Kit for Gate Openers (Polarized Beam)
- Genie Thru-Beam Photo Eye Sensor Kit with Hood
- Genie Retro-Reflective Photo Eye Kit with Hood
- Genie Universal Thru-Beam Photo Eye Sensor Kit (UL325, 115 ft Range)
- Genie Long Range Reflective Photo Eye Sensor with Reflector (40 ft, NEMA 4)
- Genie Fire Access Knox Box with Keys for Emergency Gate Entry
- Genie Ultra Plug-In Loop Detector (10-Pin)
- Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter - (UL325 NC / 10K / 4-Wire Pulse, 2 Frequency)
- Genie Monitored Safety Edge (5 ft) for 2" Square Gate Posts
- Genie Monitored Safety Edge (5 ft) for 2" Round Gate Posts
- Genie Vehicle Motion Detector Exit Wand (Direct Burial, 150 ft Lead)
Compatible Transmitters & Receivers
Compatible Keypads
Compatible Photo Eyes
Compatible Other Safety Accessories
| SKU | OPGCSW36V |
|---|---|
| Manufacturer | Genie |
| Mounting Type | Pad Mount |
| Model | Genie GCSW |
| Max Gate Size | 18 ft. per leaf |
| Max Gate Weight | 1500 lbs. per leaf |
| Package Includes | Battery Backup, Edge Kit, Gate Opener, Key(s), Photoeye(s), Transmitter, Warning Sign(s) |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Condition | New |
| Specifications Sheet | Download PDF file |
| Installation Manual | Download PDF file |
| Installation Notes | Download PDF file |
| Warranty | Download PDF file |
