Details

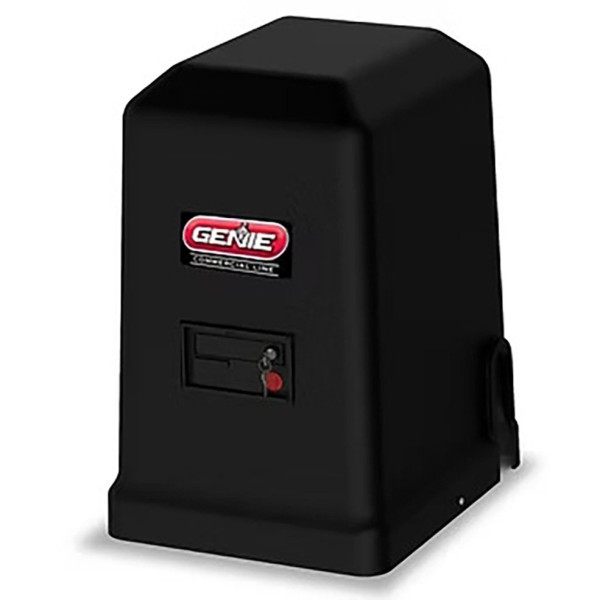

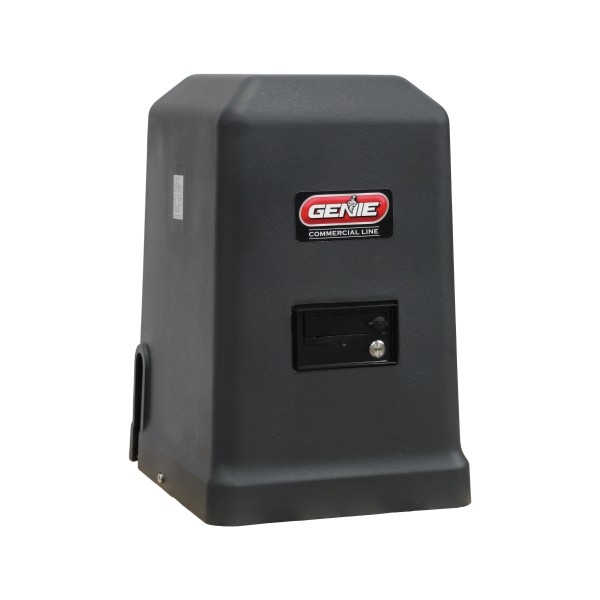

Genie Commercial Slide Gate Opener (40 ft, 1,500 lbs.) - OPGCSL36V

Meant for commercial gates up to 40' long and 1,500 lbs, the Genie Commercial Slide Gate Opener is a fantastic mechanical continuous duty for your business. Featuring a dual line backlit LCD display, 7-day timer, primary and secondary control for dual gates, and even solar compatability with its on=board solar charge controller, the Genie Commercial Slide Gate Opener is packed with features for any need!

Features:

• Dual line backlit LCD display
• Adjustable speed
• Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
• Aladdin Connect ready (with optional Wi-Fi board)
• Timer to close
• Battery backup
• Up to 150 cycles on fully charged batteries
• On-board solar charge controller
• Rack for pluggable loop detectors
• Surge protection on field wiring inputs
• Four monitored safety inputs
• Two auxiliary relays, configurable from LCD
• Built-in 7-day timer
• Primary/secondary control for dual gates

Specifications:

• Gate Leaf Weight (maximum) 1,500 lbs / 680 kg
• Gate Leaf Length (maximum) 40 ft / 12.2 m
• Opening Time 11-12 in / sec
• 115VAC, field adjustable to 230VAC
• 100% Continuous Duty Cycle
• Rated for gates up to 40 ft wide and 1500 lbs
• -20° to +60°C (-40° to +60°C with optional heater)
• (2) 7Ah batteries included
• 5 Year warranty
• UL 325 Listed, Class I, II, III, and IV
• 24VDC switched and constant accessory power, up to 800mA combined
• 36V Brushless DC Motor
• Direct drive motor to worm gear in oil bath reduction
• Electro-mechanical limits stay synced through power loss
• Keyed release lever disconnects drive allowing for easy manual operation
