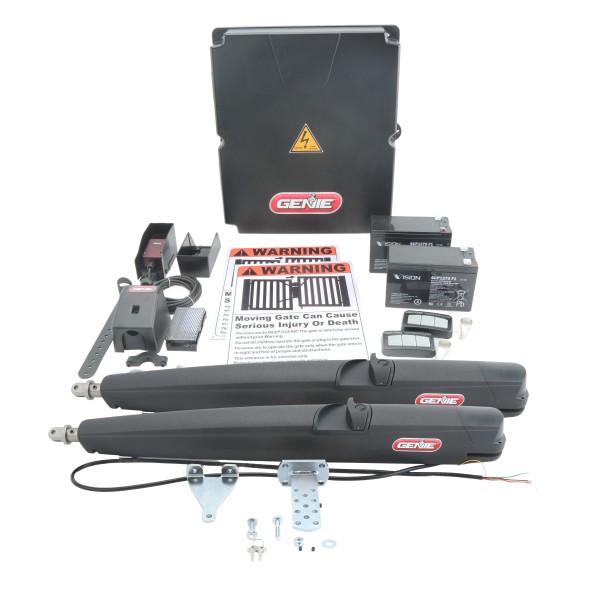

Genie Linear Residential Dual Swing Gate Opener (16 ft, 850 lbs. per leaf) - OPGLA24VPKG2

Perfect for your residential gates and private properties, the Genie Dual Residential Swing Gate Opener is the perfect way to quickly and conveniently automate your dual residential gate! Compatible with gates up to 850 lbs @ 10 ft and up to 16 ft @ 550 lbs for a wide range of residences. Featuring an adjustable opening speed for maximum customization, a timer to close, an on-board solar charge controller, and a built-in 7 day timer, this swing gate opener is a perfect choice for your dual gate.

Features:

• Dual line backlit LCD display
• Adjustable speed
• Advanced 315/390Mhz radio receiver stores up to 250 Intellicode transmitters with unique IDs
• Aladdin Connect ready (with optional Wi-Fi board)
• Timer to close
• Battery backup
• Up to 250 cycles on fully charged batteries
• On-board solar charge controller
• Surge protection on field wiring inputs
• Four monitored safety inputs
• Two auxiliary relays, configurable from LCD
• Built-in 7-day timer
• Bi-parting delay, adjustable on LCD

Gate Weight @ Gate Length

• 850 lbs (386 kg) @ 10 ft (3.0 m)
• 750 lbs (340 kg) @ 12 ft (3.7 m)
• 650 lbs (294 kg) @ 14 ft (4.3 m)
• 550 lbs (249 kg) @ 16 ft (4.9 m)

Specifications:

• 115VAC, field adjustable to 230VAC
• Duty Cycle 50% with up to 150 cycles per day
• Rated for use on gates up to 16 ft wide or 850 lbs
• -20° to +60°C
• (2) 7Ah batteries included
• 2 Year warranty
• UL325 Listed, Class I, II, III
• 24VDC switched and constant accessory power, up to 800mA combined
• 24VDC Motor
• Worm gear primary reduction
• Cast aluminum upper and lower body
• Stainless steel extension tube
• Keyed release lever for manual operation

Compatible Accessories:

Compatible Linear Actuators

• Genie Primary Linear Actuator Arm for Swing Gate Openers
• Genie Secondary Linear Actuator Arm for Swing Gate Openers

Compatible Transmitters & Receivers

• Genie Wireless Safety Edge Receiver
• Genie Wireless Edge Link Sensor TX Transmitter
• Genie 1-Button Gate Remote Control (Wireless Transmitter G1BT-P)
• Genie 3-Button Gate Remote Control (Wireless Transmitter G3BT-P)
• Genie 4-Button Gate Remote Control (Wireless Transmitter GU4T-BX)
• Genie Sensitivity Remote Control for VMD202 Exit Wand

Compatible Keypads

• Genie Wireless Keypad for Gate Openers (Intellicode GK2)
• Genie Universal Wireless Keypad for Gate Openers

Compatible Photo Eyes

• Genie Retro-Reflective Photo Eye Sensor Kit for Gate Openers (Polarized Beam)
• Genie Thru-Beam Photo Eye Sensor Kit with Hood
• Genie Retro-Reflective Photo Eye Kit with Hood
• Genie Universal Thru-Beam Photo Eye Sensor Kit (UL325, 115 ft Range)
• Genie Long Range Reflective Photo Eye Sensor with Reflector (40 ft, NEMA 4)

Compatible Other Safety Accessories

• Genie Fire Access Knox Box with Keys for Emergency Gate Entry
• Genie Ultra Plug-In Loop Detector (10-Pin)
• Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter - (UL325 NC / 10K / 4-Wire Pulse, 2 Frequency)
• Genie Monitored Safety Edge (5 ft) for 2" Square Gate Posts
• Genie Monitored Safety Edge (5 ft) for 2" Round Gate Posts
• Genie Vehicle Motion Detector Exit Wand (Direct Burial, 150 ft Lead)
