GTO PRO-SL2200B Heavy Duty Second Opener Kit for Dual Gate use w/SL2000B | Linear PRO Access

The GTO PRO-SL2200B Heavy Duty Second Slide Gate Opener Kit for Dual Gates will handle sliding gates weighing up to 1000 pounds and 30 ft. long with an opening of 20 ft. This Slide Gate Operator must be purchased with the SL-2000B for dual functionality. The access-ready package includes a battery backup, radio receiver, entry transmitter, AC transformer, and all the necessary mounting hardware for a standard post mount slide gate installation. It boasts incredible features including solar power compatibility, adjustable obstruction sensing, and a two-year warranty.
Part Number: PRO-SL2200B

Regular Price: $1,373.74

Special Price $1,267.22

OR

Details

GTO PRO-SL2200B Heavy Duty Second Opener Kit for Dual Gate use w/SL2000B | Linear PRO Access

The GTO / Linear Pro Heavy Duty Dual Slide Gate Opener will handle sliding gates weighing up to 1000 pounds and 30 ft. long with an opening of 20 ft. This Slide Gate Operator must be purchased with the SL-2000B for dual functionality. The access-ready package includes a battery backup, radio receiver, entry transmitter, AC transformer, and all the necessary mounting hardware for a standard post mount slide gate installation. It boasts incredible features including solar power compatibility, adjustable obstruction sensing, and a two-year warranty.

Package Includes:

  • Battery Backup
  • Radio Receiver
  • Entry Transmitter
  • AC Transformer
  • Mounting Hardware for Standard Post Mount

Features:

  • Full Systems Capable "Add-On Ready" Heavy-Duty Control Board
  • Adjustable Obstruction Sensing and Gate Sequencing
  • Auto Close Settings (0-120 Seconds)
  • Built-In Internal Friction Disc Brack/Lock
  • 2 x Easy To Install 4 ft. (1.2 m) Post Mounts Included
  • Chain Disconnect For Manual Operation
  • Light Professional and Residential Cycle Rated to 100 Cycles Per Day
  • Class I, II, III, IV
  • 2-Year Manufacturer's Warranty
  • System Certified With UL325 5th Edition Safety Standards, ETL Listed

Mechanical Features:

  • Operating Temperature: -5 Deg. Farenheit (-21 Deg. C) to +160 Deg. Farenheit (71 Deg. C)
  • Opening Time: 1 ft. (.31 m) Per Second Maximum
  • #41 Chain 32 ft. With Master Link
  • Fully Compatible Accessory Terminal Block Provides Connections For Safety Loops, Exit Wands, Intercoms, Card Readers, Phone Systems, etc.
  • Operation, Diagnostic and Safety Alarms
  • Inherent Obstruction Sensing
  • Electrical Features:

  • 12 Volt DC / 7.0 Amp Per Hour, Sealed Rechargeable Battery Included (Battery Charge Is Maintained By 120V AC/60 Hz Input and 18V AC at 40 VA. Output, Transformer Rectified To 14V DC Through Regulator On Control Board)
  • Powered by a reliable 12 Volt (1/4 HP Equivalent) DC Motor, Case Hardened Steel Gear Reducer
  • Charging Regulated Circuit On Control Board
  • Sleep Draw 40 mA; Active Draw 2 - 9 Amps
  • Options/Acessories:

  • Solar Power Compatible: Add FM123 Solar Panel Complete Kit
  • Pad Mount: Add SGMP Pad Mounting Plate
  • Wireless Vehicle Sensor: Add R4500 Vehicle Sensor
  • Transmitters: AddRB741 or RB742
  • Digital Keypad: Add F310 Keypad
  • *Concrete Mounting Plate Sold Separately

    Product Specifications Specifications Install Manual Warranty

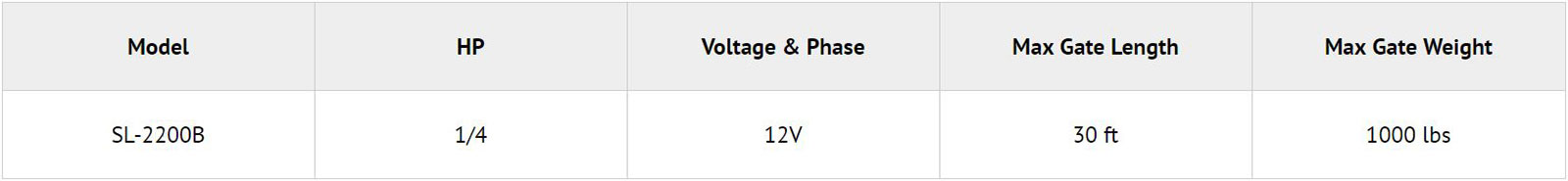

    Name GTO PRO-SL2200B Heavy Duty Second Opener Kit for Dual Gate use w/SL2000B | Linear PRO Access
    SKU PRO-SL2200B
    Manufacturer Linear PRO Access / GTO PRO Inc
    Part # LPA-PRO-SL2200B
    Model SL2000B
    Max Gate Size 30 ft. per leaf
    Max Gate Weight 1000 lbs. per leaf
    Condition New
    Price $1,373.74
