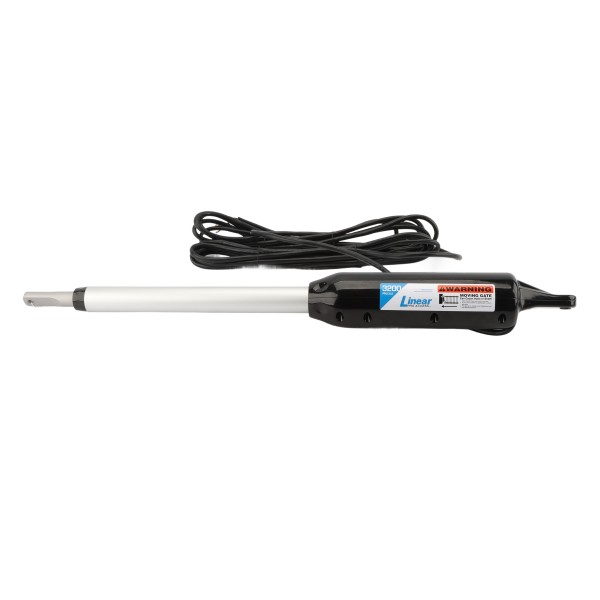

GTO / Linear Pro Secondary Swing Gate Opener Kit for use with SW-3000XLS, 650lb or 16ft - PRO-SW3200XLS

The GTO / Linear Pro Secondary Swing Gate Opener Kit comes with a secondary operator arm and all of the mounting hardware necessary for installation. The new and improved SW3200XLS allows you to get the extra strength, speed, and power to handle even the toughest gates.
Part Number: PRO-SW3200XLS

Regular Price: $602.89

Special Price $549.94

OR

Details

GTO / Linear Pro Secondary Swing Gate Opener Kit for use with SW-3000XLS, 650lb or 16ft - PRO-SW3200XLS

The GTO / Linear Pro Secondary Swing Gate Opener Kit features a low voltage system for easy installation and maintenance, improved true soft start and stop operation, and open and close times from 15-18 seconds. This Swing Gate Operator Kit includes one arm and all the mounting hardware and brackets necessary for installation. The UL Rated kit is new and improved allowing you to get the extra strength, speed, and power to handle even the toughest gates. For a Dual Gate application, the PRO-SW3200XLS (Secondary Operator Arm) should be used with the PRO-SW3000XL to automate both gate leaves.

Kit Includes:
  • - Secondary Operator Arm
  • - H301P Hardware
  • - HB301 Mounting Brackets
  • - 2 Year Warranty
Features:
  • - Easy transmitter programming with the touch of a button
  • - Improved Front Mount and Scraper Seal Design
  • - Low Voltage System - no electrician or welding required
  • - Solar Compatible, SW-3200XLS is fully compatible, and easily convertable to Solar Powered
  • - Features GTO / Linear Pro's Improved true soft start and stop operation. Open and Close times from;18 to 20 seconds 15 to 18 seconds
  • - Extended Cycle Life - New Improved motor design makes this opener ideal for today's single family homes or ranches
  • - U.L. rated for Class I. System certified to be in compliance with U.L. 325, latest revision
  • - For a Dual Gate Application the PRO-SW3200XL (2nd Gate Opener Arm) should be used with the PRO-SW3000XL to automate both gate leaves
  • - Works on all types of gates;* chain link, tube, panel, ornamental, wood and vinyl
  • - 2-Year Manufacturer's Warranty Included
Electrical Features:
  • - Powered by a reliable 12 Volt (120 Watt) DC motor, 16:1 planetary gear drive system
Mechanical Features:
  • - Operating temp -5 F (-21C) to +160 F (71 C)
  • - Range of arm stroke: up to 16" (41 cm)
  • - Operator length: with arm fully retracted is 40.25" (102 cm) mounting point to mounting point
  • - Operation, diagnostic and safety alarms
  • - Inherent obstruction sensing
  • - Soft start/soft stop for long mechanical life expectancy
  • - Auto close adjustable 3 to 120-second delay
Note: This is a secondary arm only, needs the SW3000XLS kit to function.

*NOTE: Solid gates create wind resistance and can affect the performance of the entire gate system. Call technical service for the best advice for your application.

SKU PRO-SW3200XLS
Manufacturer Linear PRO Access / GTO PRO Inc
Part # LPA-PRO-SW3200XLS
Model SW3000XLS
Max Gate Size 16 ft. per leaf
Max Gate Weight 650 lbs. per leaf
Package Includes Hardware, Secondary Arm
Condition New
