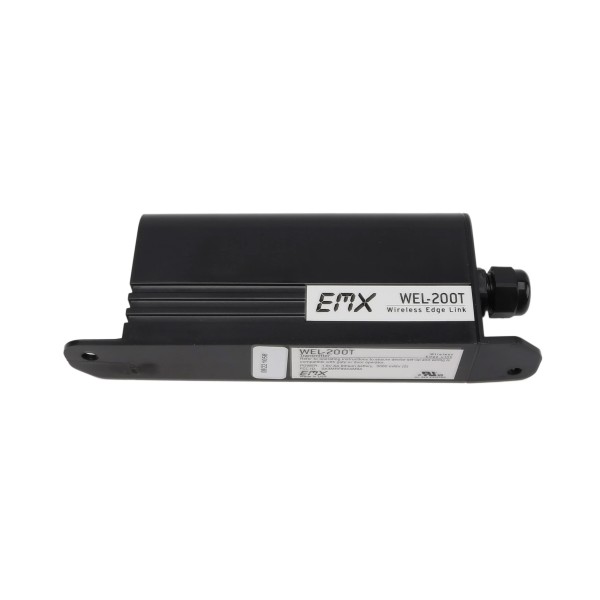

Genie Wireless Edge Link Sensor TX Transmitter - ‭OPAKWETX.S‬

The Genie Wireless Edge Link Sensor TX Transmitter is a completely wire-free solution for interfacing sensing edges with gate and door openers. With the WEL-200, there is no need to wire between the safety edge and the control box, and it still maintains compliance with UL325 monitoring standards. The Wireless Edge Link operates up to 200' between the transmitter and receiver. It is encased in a water-tight, sturdy NEMA 4X enclosure. The transmitter is compatible with 8.2K and 10K monitored safety edges and can operate for two years on 2 AA lithium batteries. Up to 4 transmitters can be connected with one receiver.

Features:

• Up To 200' Operating Range
• Connect Up To 4 Safety Edge Transmitters
• NC, 10K, and Pulse Monitoring
• NEMA 4X Enclosure
• UL325-2018 Compliant

Specifications:

• Operating Range: 200'
• Operating Frequency: 915 MHz
• Response Time: 100ms
• Power Protection: Thermal Fuse
• Operating Environment: - 40 Degrees F to 140 Degrees F
• Transmitter Power Supply: 3 - 3.6 VDC (2x AA Batteries)
• Transmitter Dimensions: 7" x 1.3" x 2.6"
• Transmitter Connections: 2 Terminals
