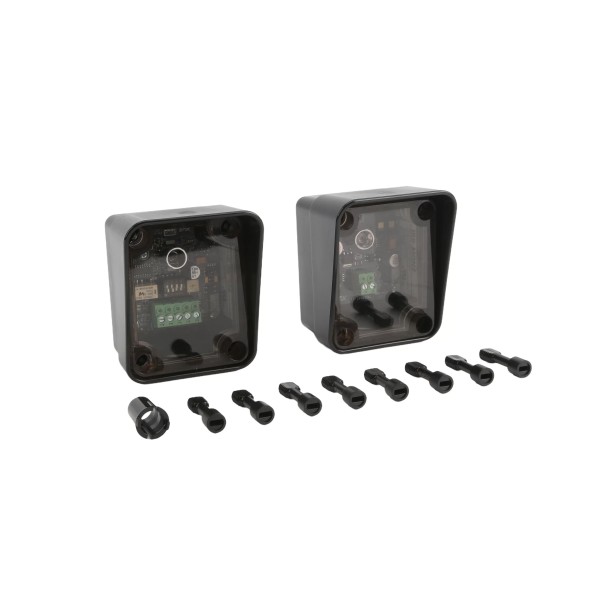

Genie Universal Thru-Beam Photo Eye Sensor Kit (UL325, 115 ft Range) - 113392.0001.S

The Genie Universal UL325 Thru-Beam Photoeye photo-eye features the same capabilities as the IRB-MON but with improvements. This UL325 compliant thru-beam infrared photo eye provides superior entrapment protection for doors, gates, and barriers. It has - molded plastic hood integrated with sensor housing and - smaller housing for versatile installation. With an IP65-rated enclosure, it is suitable for indoor and outdoor use, offering superior construction to prevent false triggering.

Key Features:

• Molded hole in bottom for 1/2 in. NPT connection
• Better performance in cold weather
• Advanced features from the IRB-MON
• Easy installation
• Thru-beam configuration
• Includes transmitter, receiver, integrated protective hoods, and removable lens sunshield

Monitoring Interfaces:

• Normally closed
• Two-wire pulsed (2 freq)
• Two-wire pulsed (3 freq)
• 10K resistive termination

Specifications:

• Operating range: - to 115 ft
• Power: 6-35 VDC, 12-24 VAC
• Current (using NC - 10K monitoring methods): 35 mA DC (when aligned and relay activated)
• Current (pulse monitoring methods): 15 mA
• Connections: Removable screw terminal for quick wiring
• Monitoring methods: 10k, 2-wire pulse, normally closed (power cycle)
• Relay output configuration: Form - contacts (NO, COM, NC)
• Response time: <300 ms (for NC or 10K monitoring)
• Operating temperature: -40°F to 170° F
• Dimensions (L - W - H): 3.6" - 2.9" - 2.9"
• Conduit hole size (bottom of housing): 0.83" (for1/2 inch NPT)
