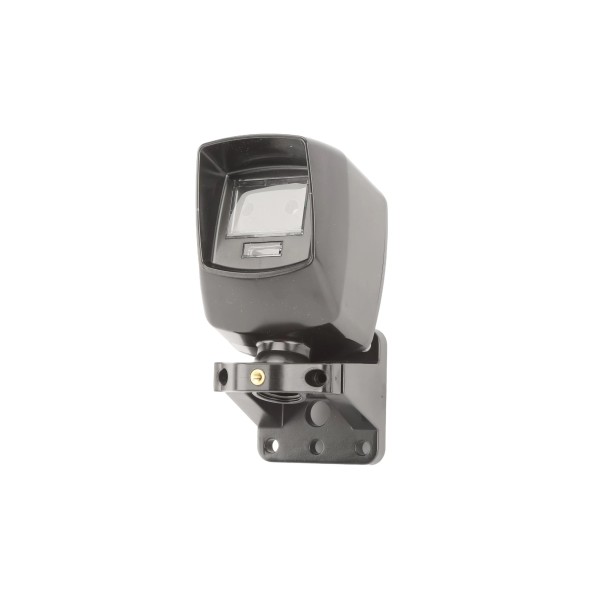

Genie Retro-Reflective Photo Eye Kit With Hood - IRB-RET2 - ‭113390.0001.S‬

The Genie Retro-Reflective Photo Eye Kit With Hood Retro-reflective Photo Eye is a compact, versatile photo eye made in the USA. It includes 6 UL325 monitoring methods and features such as a ball and socket bracket, reflector extension bracket, and an easy-alignment LED. The LED flashes faster as alignment improves and becomes steady when perfect alignment is achieved. This kit simplifies setup and works up to a 60 ft operating range, offering flexible installation and compatibility with various gate openers.

Features:

• 6 UL325 Monitoring Methods
• Type B1, Non-Contact Sensor
• Operating Range: Up to 60 ft
• Sensitivity adjusted by potentiometer
• Universal mounting bracket
• Includes all necessary components for installation
• Alignment LED
• Integrated sensor hood
• Ball and socket bracket
• Reflector extension bracket included
• Selectable stealth mode (LEDs turn off after 30 minutes of unobstructed alignment)

Specifications:

• Operating Range: 5 ft (1.5 m) to 60 ft (18.3 m)
• Sensitivity Adjustment: Potentiometer
• Power: 6-40 VDC, 12-24 VAC
• Current (NC and 10K Monitoring Methods): 50 mA DC (relay activated)
• Current (Pulse Monitoring Methods): 15 mA DC
• Resistive Termination: 10K ohm across NO contact (switch selectable)
• Surge Protection: Thermal fuse, MOV
• Relay Output Operation: Light ON/Dark ON
• Response Time: 250ms
• Operating Temperature: -30° to 140°F (-34° to 60°C)
• Environmental: NEMA 4X
• Dimensions (L x W x H): 5.1" (130 mm) x 3.15" (80 mm) x 5.5" (140 mm)
• Ball Joint Mount Conduit Thread: 1/2" NPT

Monitoring Methods:

• Normally Closed
• 10K Resistive Termination
• Two-Wire Pulsed (2 Frequency)
• Two-Wire Pulsed (3 Frequency)
• Four-Wire Pulsed (2 Frequency)
• Four-Wire Pulsed (3 Frequency)
