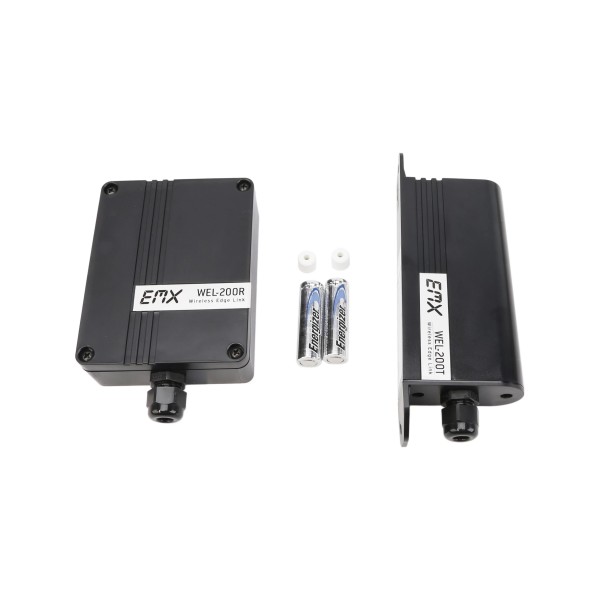

Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter - (UL325 NC / 10K / 4-Wire Pulse, 2 Frequency) - ‭OPAKMCWE.S‬

The Genie Gate Edge Wireless Edge Link Sensor Kit with Transmitter Wireless Edge Link is a completely wire-free solution for interfacing sensing edges with gate and door openers. With the Genie Gate Edge Wireless Edge Link Sensor Kit, there is no need to wire between the safety edge and the control box, and it still maintains compliance with UL325 monitoring standards. The Wireless Edge Link operates up to 200' between the transmitter and receiver. It is encased in a water-tight, sturdy NEMA 4X enclosure. The Genie Gate Edge Wireless Edge Link Sensor receiver connects with up to 4 transmitters, all with their own relay and pulse outputs for open and close edge functioning. The transmitter is compatible with 8.2K and 10K monitored safety edges and can operate for two years on 2 AA lithium batteries. The WEL-200 receiver makes installation a breeze and maintenance easy and reliable. It supports all monitoring methods, including normally closed, resistive termination, and pulse output.

Features:

• Up To 200' Operating Range
• Connect Up To 4 Safety Edge Transmitters
• NC, 10K, and Pulse Monitoring
• NEMA 4X Enclosure
• UL325-2018 Compliant

Specifications:

• Operating Range: 200'
• Operating Frequency: 915 MHz
• Response Time: 100ms
• Power Protection: Thermal Fuse
• Operating Environment: - 40 Degrees F - 140 Degrees F
• Transmitter Power Supply: 3 - 3.6 VDC (2x AA Batteries)
• Receiver Power Supply: 12 - 24 VAC/VDC
• Transmitter Dimensions: 7" x 1.3" x 2.6"
• Receiver Dimensions: 5.5" x 1.3" x 3.5"
• Transmitter Connections: 2 Terminals
• Receiver Connections: 12 Terminals
