Details

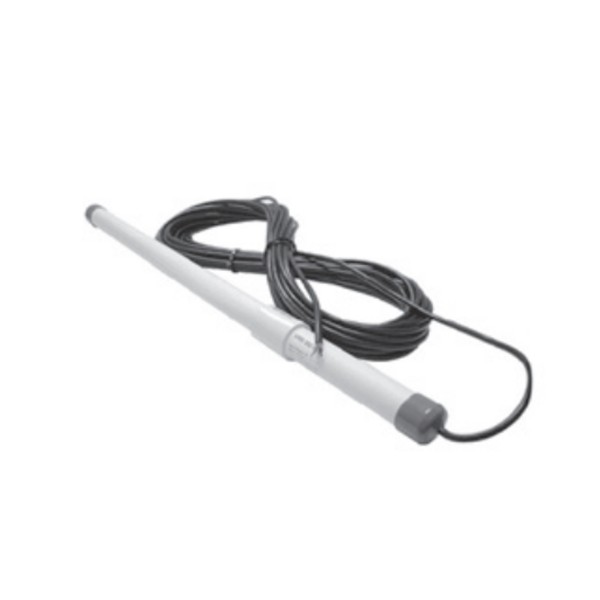

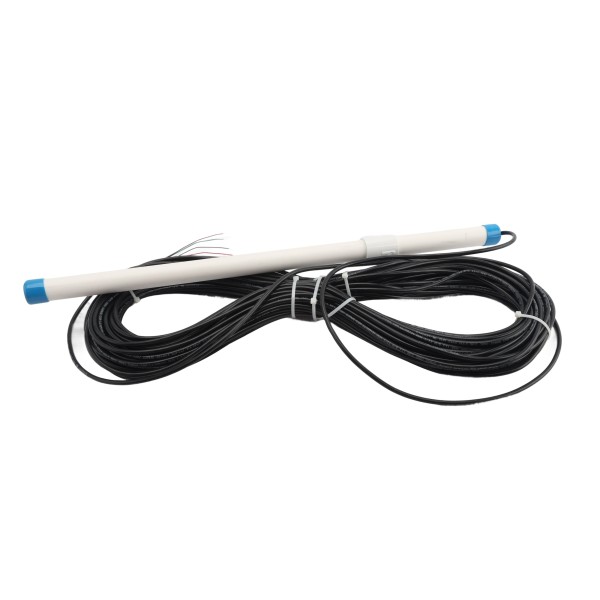

Genie 5-Wire Direct Burial Vehicle Motion Detector Exit Wand (150' Lead Cable) - 113394.0001.S

The single-piece Vehicle Motion Detector from Genier, detects changes in earth's magnet field near the probe up to 12 ft. It will detect vehicles moving at a minimum speed of 5mph, therefore it will not detect a stationary vehicle. It can be used in free exit applications to open gates for guests without requiring access equipment such as a key fob or keypad code. Other applications include wiring this Vehicle Motion Detector to a home automation system to detect a vehicle moving down a driveway with a cable length of 150 ft. This Vehicle Motion Detector has a watertight PVC construction, making it suitable for direct burial applications.

Features:

• Accepts Wide Range Of Power Inputs
• Energy Saving Low Current Consumption
• 150 ft Lead Cable For Direct Burial Along Driveways
• Probe Input Circuitry Protected By Surge Suppressors
• Pre-Wired Harness Onto Lead Wire For Easy Installation
• Detects Ferrous Materials In Motion, Will Not Detect Aluminum
• Detects Changes In Earth's Magnetic Field Up To 12 ft Near Probe
• In The Event Of Power Failure, Settings Are Stored And Saved In A Non-Volatile Memory
• Watertight PVC Composition Ensures Long-Lasting, Reliable Performance As Direct Burial Probe

Specifications:

• Detection Range: 12'
• Output Time: 5 Seconds
• Probe Dimensions: 24" x 1"
• Probe Cable: 5 Wire, Direct Burial
• Power Supply: 9-41V DC to 6-29V AC
• Operating Temperature: -40°F To 180°F
• Probe Housing Material: Watertight PVC
• Current Consumption: 250uA While On Standby, 12mA While Activated
• Relays: Normally Open, Normally Closed, Common, Form C (SPDT) 1A@24V DC, 1A@120V AC

*Probe Must Be Stationary To Function Properly.
